Special Tools Required

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

52 0 050 PLIERS

Necessary preliminary tasks:

Remove rear seat . Refer to 52 24 005 Removing And Installing/Replacing Rear Seat .

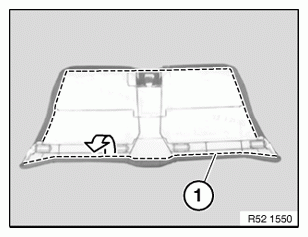

Lever welt (1) in marked area out of wire frame.

Fig 1: Identifying Lever Welt In Marked Area Of Wire Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and padding:

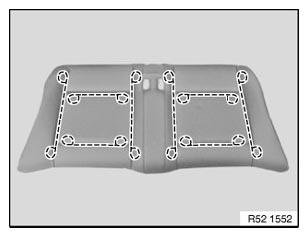

Release all retainers in marked area
Remove seat cover from padding
Remove remaining retainers from cover and padding

Fig 2: Identifying Retainers In Marked Area
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new retainer (2) with special tool 52 0 050 and bend closed.

Padding
Retainer
Trim wire in padding
Trim wire in seat cover
Seat cover

Fig 3: Identifying Retainer With Special Tool 52 0 050
Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

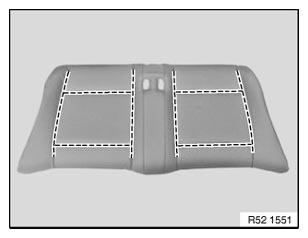

Pull all trim wires out of seat cover
If necessary, cut in take-up for trim wires of new cover
Push trim wires into new seat cover

Fig 4: Identifying Retainers Clips Area
Courtesy of BMW OF NORTH AMERICA, INC.
