51 13 316 Removing And Installing/Replacing Trim Strip On Roof Gutter At Left Or Right: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Detach mucket (1) in area of trim strip (3).

Pull seal (2) out of trim strip (3).

Release screws (4).

Installation:

Make sure seal (3) and mucket (1) are correctly seated.

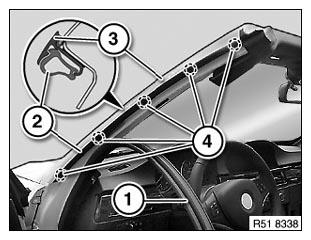

Fig 1: Identifying Mucket In Area Of Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully feed trim strip (1) out of mucket (2) and remove.

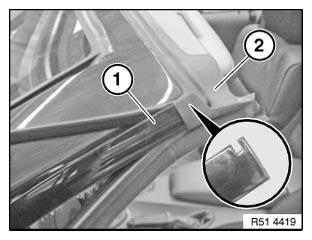

Fig 2: Identifying Feed Trim Strip & Mucket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Sealing tape on trim strip (1) must not be damaged.
