51 43 034 Removing And Installing/Replacing Rear Left Or Right Lower Side Trim Section: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage!
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary tasks:
- Remove rear seat . See SEATS - REPAIR (CONVERTIBLE) .
- Release upper side trim section (do not remove)

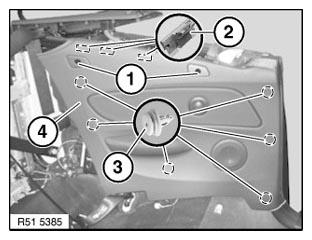

Release screws (1).
Release retainers (2) and clips (3).
Feed lower side trim section (4) out of entrance cover strip.
Disconnect all associated plug connections and remove lower side trim section (4) in inward direction.
Installation:
If necessary, replace faulty retainers (2) and clips (3).
Installation:

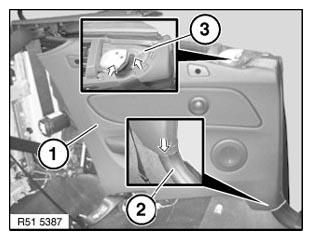

Feed in lower side trim section (1) in area of entrance cover strip (2).
Position lower side trim section (1) correctly at retainers and clips and clip into position.
Make sure seal (3) is correct installation position in area of belt guide.
