51 46... Removing And Installing/Replacing Upper Cross-Member Cover
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of injury!
There is a danger of trapping when working in the area of the convertible top system. Make sure convertible top is not actuated during work.
Necessary preliminary tasks:
- Removing air outlet grill
NOTE:
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.
Move convertible top into position shown.
Lift clamping bracket and soft top compartment cover upright.

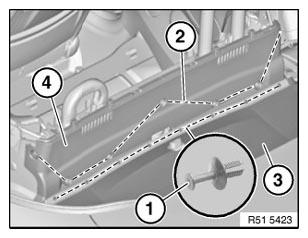

Release expansion rivets (1).
Release screws (2).
Raise panel for convertible top compartment (3) in covered area.
Feed out cross-member cover (4) towards top.
Installation:
Feed all screws/expander rivets onto cross-member cover (4).
Align cross-member cover (4) with rollover protection system and secure with screws/expander rivets.
