51 46 050 Removing And Installing/Replacing Top Trim On Rear Apron: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove luggage compartment floor trim (luggage compartment mat).

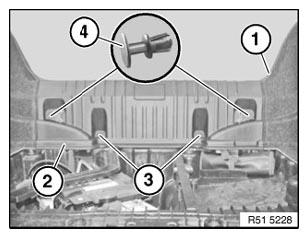

Detach seal (1) in covered area of trim (2).
Release screws (3).
Release expander rivets (4) and lever out trim (2) in inward/upward direction.
Installation:
If necessary, replace damaged expander rivets (4).
