51 46 030 Removing And Installing/Replacing Trim For Belt Guide On Left Or Right

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Risk of injury!

There is a danger of trapping when working in the area of the convertible top system. Make sure convertible top is not actuated during work.

Necessary preliminary tasks:

Open convertible top compartment lid, fold in convertible top if necessary

Release screw (1).

Raise belt and remove cover (2) from side panel towards top.

Installation:

Make sure cover (2) is correctly seated on side panel.

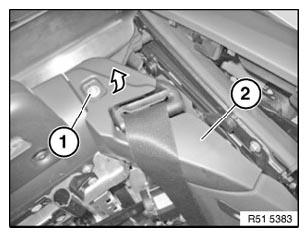

Fig 1: Removing Cover From Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) on cover (2) must not be damaged.

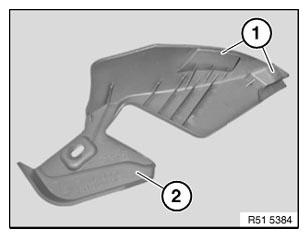

Fig 2: Identifying Guides On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
