51 16 341 Removing And Installing/Replacing Lock Cylinder For Glovebox
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required
- 00 9 321
IMPORTANT:
Risk of damage!
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary tasks:
- Open glovebox cover

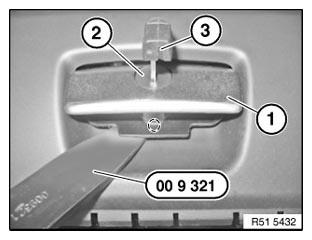

Lift handle (1) on glovebox cover.
Engage special tool 00 9 321 under handle (1) in middle on lock cylinder (2).
Press lock cylinder (2) outwards and release from catches.
Pull lock cylinder (2) with ignition key (3) out of guide.
Installation:

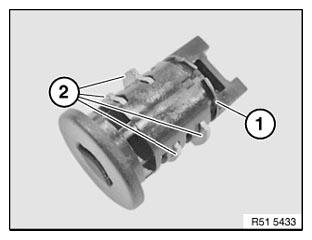

Locking rib (1) and lugs (2) must not be damaged.
