51 16 080 Removing And Installing Or Replacing Sun Visor And Left Or Right Counter-Support
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

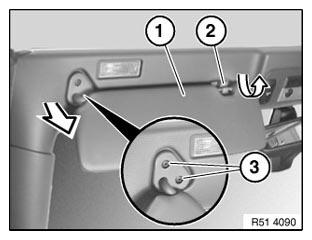

Lever sun visor (1) out of counter-support (2) in direction of arrow.
Release screws (3) and feed out sun visor towards bottom.
If necessary, disconnect plug connection and remove sun visor (1).
Installation:
Perform function check on lighting.
Lever out side strips (1).
Release screws (2) and remove counter-support (3).
Installation:
Strips (1) must not be damaged.
