51 23 213 Removing And Installing/Replacing Cable For Hood/Bonnet Lock (To Interior)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove footwell side trim panel

Disengage Bowden cable (1) from release lever (2) and feed out in direction of arrow.

Fig 1: Disengaging Bowden Cable From Release Lever

G04752663

Courtesy of BMW OF NORTH AMERICA, INC.

Release holder (1).

Release catches (3) and remove right cover (2).

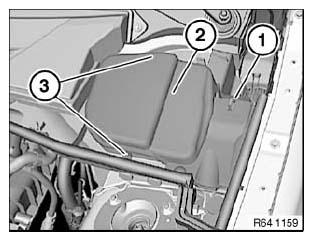

Fig 2: Identifying Holder, Catches & Right Cover

G04727865

Courtesy of BMW OF NORTH AMERICA, INC.

Release expander rivet (1) and nut (2).

Feed out water channel (3) towards top.

Fig 3: Identifying Rivet & Nut

G04752664

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out Bowden cable (1) in direction of engine compartment.

Installation:

Lay Bowden cable (1) without kinks.

IMPORTANT:

Grommet (2) must not be damaged.

Check that grommet (2) is correctly seated (water ingress).

Fig 4: Removing Bowden Cable

G04752665

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover (1) from coupler (2) in direction of arrow.

Lever out Bowden cable (3) in direction of arrow and remove.

Fig 5: Removing Cover From Coupler

G04788638

Courtesy of BMW OF NORTH AMERICA, INC.
