51 76 005 Replacing Convertible Top Compartment Lid Seal
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Open soft top compartment lid, fold in soft top if necessary
- Remove window cavity cover strip at outer left and right
NOTE:
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.
IMPORTANT:
Do not stretch, kink or crush seal (1).

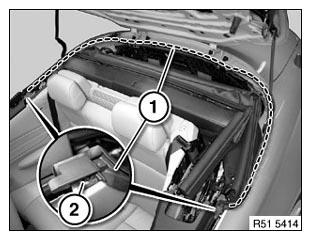

Release seal (1) at catches (2).
Pull off seal (1) along dashed line.
Installation:
Ensure seal (1) is correctly seated.
Moisten seal (1) with soapy water.
Catches (2) must not be damaged.
