Right Tension Strut
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Remove left tension strut.

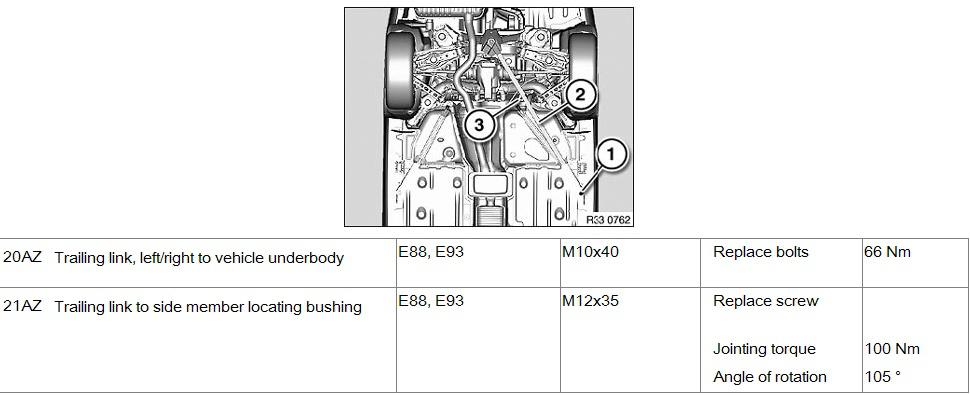

Release screws (1, 3) and remove right tension strut (2).
Installation:
Make sure screws are installed in correct positions.
- Screw (1) M12x35
Tightening torque, see 51 71 21AZ in 51 71 SEALS AND LOOSE BODY PARTS .
- Screw (3) M10x25
Tightening torque, see 51 71 20AZ in 51 71 SEALS AND LOOSE BODY PARTS .
