51 71 447 Removing And Installing Or Replacing Panel For Cover On Left Or Right Side Member

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove entrance cover strip

Release expansion rivets (1).

Fig 1: Identifying Expansion Rivets

G05779445

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Fig 2: Identifying Screws

G04752873

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip trim panel (1) from retainers in areas (2 and 3).

Open door and remove panel (1) in direction of arrow.

Fig 3: Removing Panel

G05779447

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers on front holders (1 and 2) must not be damaged.

Fig 4: Identifying Retainers On Front Holders

G05779448

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers on rear holder (1) must not be damaged.

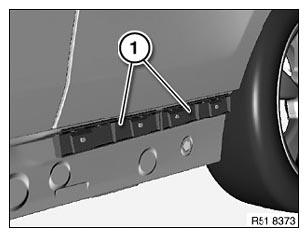

Fig 5: Identifying Retainers On Rear Holder

G06177022

Courtesy of BMW OF NORTH AMERICA, INC.
