Ideal Adjustment, Longitudinal Direction

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Open door window.

Insert special tool 51 0 330 in front door.

Raise the door window.

Door window glass must rest without play on special tool 51 0 330.

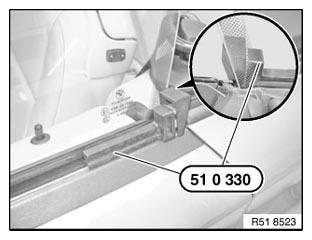

Fig 1: Identifying Special Tool 51 0 330 On Front Door
G06176817Courtesy of BMW OF NORTH AMERICA, INC.
