Adjusting Longitudinal Direction/Retraction Depth

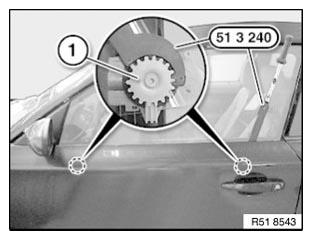

Slacken hook screws (1) with special tool 51 3 240  until door window glass can just be moved.

Fig 1: Slackening Hook Screws Using Special Tool 51 3 240

Courtesy of BMW OF NORTH AMERICA, INC.

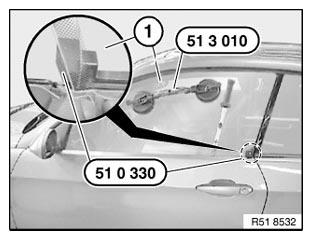

Attach special tool 51 3 010  to door window (1).

Slide door window glass (1) up against special tool 51 0 330  .

Adjust retraction depth of door window (1) in area of A-pillar and B-pillar.

Fig 2: Identifying Special Tool 51 3 010 Attaching To Door Window

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The tightening torque to be set 51 32 1AZ in 51 32 FRONT DOOR WINDOWS (MDE) is reduced when special tool 51 3 240  is used. Depending on the torque wrench used, this must be calculated according to the adjacent equation:

MDE Torque to be set

=

MDV Prescribed torque (without special tool)

=

lj = Standard adjustment length with adjusting tool

l1 = Effective length of torque wrench

l2 = Inside dimension of adjusting tool

lw = Inside dimension of insertion tool (here lw = 246 mm+l2)

Fig 3: Identifying MDE Adjacent Equation

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If screwing is performed from the inside of the door (removed door trim panel), the tightening torque to be set 51 32 1AZ in 51 32 FRONT DOOR WINDOWS (without special tool) must be observed.

Tighten hook screw (1) with special tool 51 3 240  .

Check adjustment, repeat procedure if necessary.
