51 11 180 Removing And Installing/Replacing Trim Grille In Bumper Trim
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required

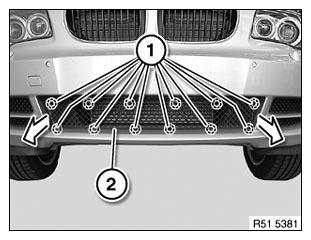

Release catches (1) with special tool 00 9 317 and remove trim grille (2) from bumper trim towards front.
Installation:

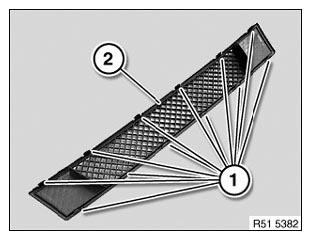

Catches (1) on trim grille (2) must not be damaged.
