51 47... Removing And Installing/Replacing Lip On Underbody Panelling On Left Or Right
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.
The operation is described on the left side; proceed in the same way for the right side.

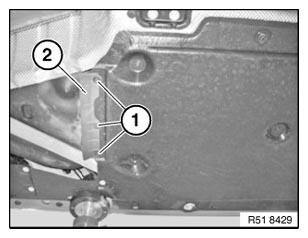

Release screws (1) and remove lip (2) from underbody panelling.
Installation:
If necessary, replace faulty metal nuts.
