51 47... Removing And Installing/Replacing Left Or Right Underbody Panelling: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
Only if removing left underbody panelling:
- Remove rear underbody protection . See 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .
NOTE:
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.
The operation is described on the left side; proceed in the same way for the right side.

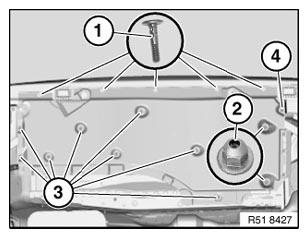

Release clips (1).
Release plastic nuts (2).
Unfasten screws (3 and 4).
Feed out underbody panelling and remove towards bottom.
Installation:
If necessary, replace faulty clips (1) and plastic nuts (2).
