51 47 161 Removing And Installing/Replacing Right Luggage Compartment Wheel Arch Trim: Replacement

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

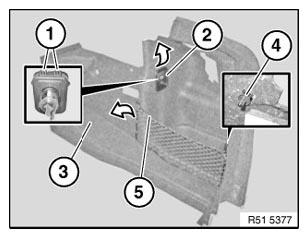

Fig 1: Uncliping Emergency Release Knob

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release catches (1) and modify socket (2).
Release retainer (4) on back of luggage compartment wheel arch trim (3) and remove stowage net (5).

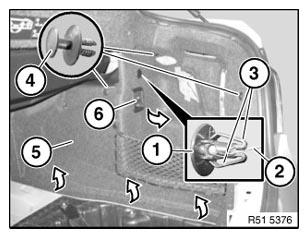

Fig 2: Releasing Catches
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (1) and catches (2) on socket (3) must not be damaged.

Fig 3: Identifying Guide & Catches On Socket

Courtesy of BMW OF NORTH AMERICA, INC.
