51 47 140 Removing And Installing/Replacing Panel For Luggage Compartment Partition: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove luggage compartment floor trim panel

Version with ski bag:

Remove ski bag

Unfasten expansion rivets (1) and remove luggage compartment partition wall (2).

Installation:

If necessary, replace faulty expander rivets (1).

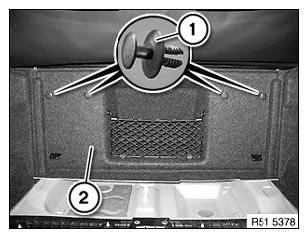

Fig 1: Identifying Expansion Rivets & Luggage Compartment Partition Wall

Courtesy of BMW OF NORTH AMERICA, INC.
