51 37 265 Removing And Installing/Replacing Window Cavity Cover Strip For Door Window, Rear Left Or Right
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The Instructions on fitting window guides
serve as the basis for this repair instruction and must be observed without fail.
Necessary preliminary tasks:
- Release rear side trim panel upper section and place to one side
NOTE:
Before removing window cavity cover strip, make not of exact installation position with respect to adjoining components.
IMPORTANT:
Risk of damage!
If reusing the existing window cavity cover strip (3), make sure it is not bent.

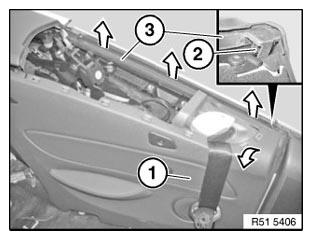

Release side trim panel lower section (1) at top in area of B-pillar and pull inwards.
Release catch (2) and, starting at front, pull off window cavity cover strip (3) towards top.
Installation:
Moisten window cavity cover strip (3) prior to fitting with approved anti-friction agent .
Make sure window cavity cover strip (3) is correctly seated.
Installation:

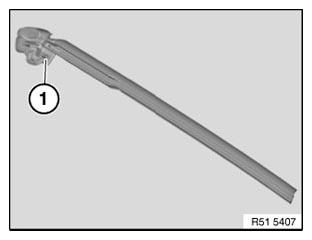

Catch (1) must not be damaged.
