Special Tools Required
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
- 00 9 311
IMPORTANT:
The Instructions on fitting window guides
serve as the basis for this repair instruction and must be observed without fail.
Necessary preliminary tasks:
- If necessary, open convertible top
- If necessary, open side window glass
NOTE:
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.
IMPORTANT:
Risk of damage!

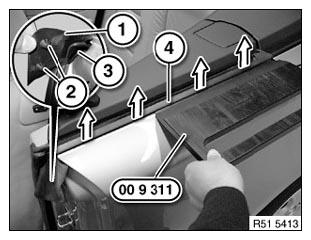

The weatherstrip (4) can bend when lifted out too far.
Attach adhesive tape under window cavity cover strip (4) (damage to paintwork).
Detach seal (1) at retaining elements (2) and shaped part (3) from side panel.
Using special tool 00 9 311 beginning at rear, carefully lever out window cavity cover strip (4).
Installation:
Ensure seal (1) is correctly seated.
Retaining elements (2) and shaped part (3) must not be damaged.
If necessary, moisten window cavity cover strip (4) prior to fitting with approved anti-friction agent .
