51 37 171 Replacing Rear Left Or Right Side Window

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

51 3 240 SPANNER

Necessary preliminary tasks:

Remove rear power window unit

Release hook screws (1) with special tool 51 3 240 .

Feed side window glass (2) out of power window unit (3).

Installation:

Adjust rear side window .

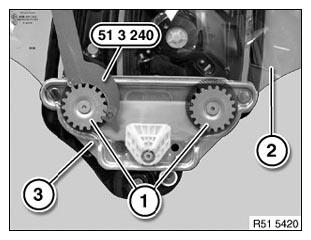

Fig 1: Releasing Hook Screws Using Special Tool 51 3 240

Courtesy of BMW OF NORTH AMERICA, INC.
