Checking Retraction Depth

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Close soft top.
Open door window
Attach special tool 51 3 080 to side window glass and secure if necessary
Close side window completely
Measure retraction depth

NOTE: 2 items of special tool 51 3 080 are required for adjustment of retraction depths.

Fig 1: Identifying Special Tool 51 3 080 On Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Values serve only to check adjustment in the Z-direction.

Measure retraction depth (A) in areas (1 and 2).

Measurement (A):

(1) 8 ± 2 mm

(2) 10 ± 2 mm

If necessary, check or readjust settings on:

Door window glass
Side window

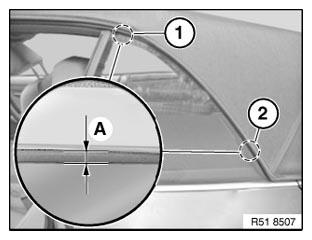

Fig 2: Identifying Retraction Depth
Courtesy of BMW OF NORTH AMERICA, INC.
