41 11 141 Replacing Cover For Left Or Right Frame Side Member (Partial Replacement Between A- And B-Pillars)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of Body, General . Refer to 41 0 Contents Of Body, General .
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Use only approved spot-welding apparatus for repairs. Refer to 41 00... Workshop Equipment .

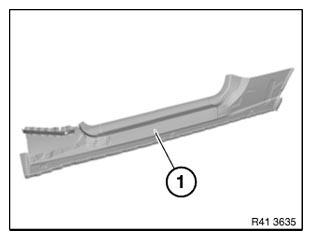

Following new body parts are required:

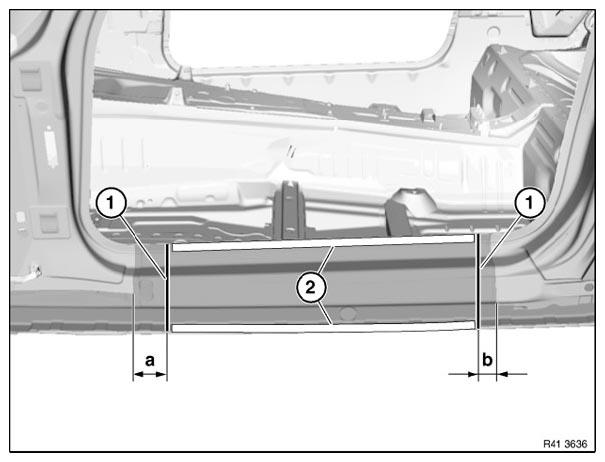

Mark severance cuts (1) in accordance with specified measurements and cut.
Measurement a = approx. 50 mm behind A-pillar
Measurement b = approx. 30 mm before side panel at rear
Open weld joints in areas (2).
Installation:
Weld reinforcement plates at all severance cuts (1). Refer to 41 00... Welding In Reinforcement Plate (Steel Plate) .
