41 25 X30 Removing And Installing/Replacing Left Or Right Hinge For Convertible Top Compartment Lid
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of Body, General .
Open rear lid. Release seal in hinge area.

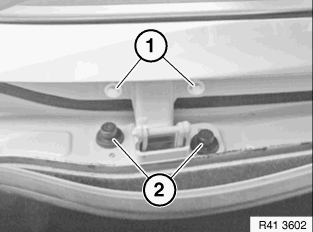

Release screws (1). Tightening torque 41 63 3AZ . Release protective caps (2) and screws underneath.
Tightening torque 41 63 4AZ . Remove hinge.
Installation:

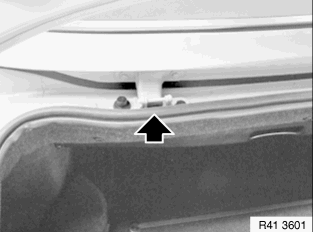

Install hinge at screw locations of convertible top compartment lid.
If necessary, adjust convertible top compartment lid.
