36 10 209 Checking front and rear wheel for lateral and radial runout

Special tools required:

• 36 1 030

Necessary preliminary tasks:

• Check wheel bearings

Lift vehicle.

Check wheel with special tool 36 1 030 for lateral runout. Refer to technical data for ONE-PART ALLOY WHEELS , TWO-PART ALLOY WHEELS , or STEEL AND ALUMINUM STRIP WHEELS .

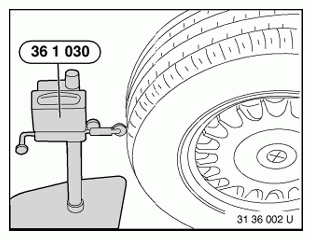

Fig 1: Checking Wheel Lateral Runout Using Special Tool 36 1 030

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 for radial runout. Refer to technical data for ONE-PART ALLOY WHEELS , TWO-PART ALLOY WHEELS , or STEEL AND ALUMINUM STRIP WHEELS .

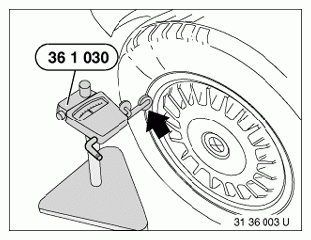

Fig 2: Checking Wheel Radial Runout Using Special Tool 36 1 030

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check lateral runout of rim with special tool 36 1 030 . Refer to technical data for ONE-PART ALLOY WHEELS , TWO-PART ALLOY WHEELS , or STEEL AND ALUMINUM STRIP WHEELS .

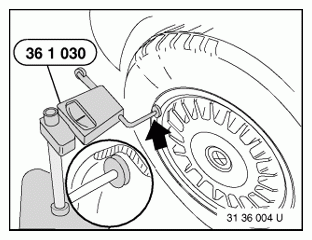

Fig 3: Checking Lateral Runout Of Rim Using Special Tool 36 1 030

Courtesy of BMW OF NORTH AMERICA, INC.

Check radial runout of rim with special tool 36 1 030 . Refer to technical data for ONE-PART ALLOY WHEELS , TWO-PART ALLOY WHEELS , or STEEL AND ALUMINUM STRIP WHEELS .

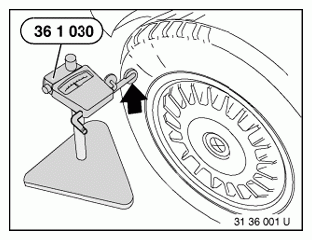

Fig 4: Checking Radial Runout Of Rim Using Special Tool 36 1 030

Courtesy of BMW OF NORTH AMERICA, INC.
