36 12 001 Replacing a tire: Notes

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

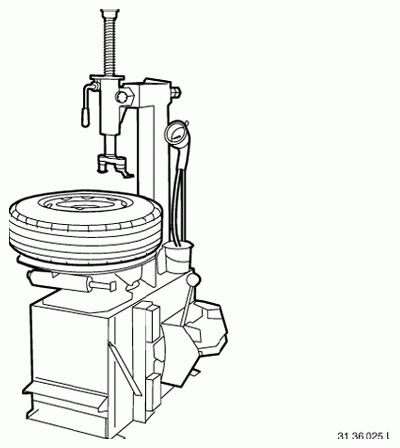

Fig 1: Replacing Tyre

Courtesy of BMW OF NORTH AMERICA, INC.

Refer to the operating manual of the relevant fitting equipment manufacturer for details on how to fit the tire correctly.

However, it is essential to make sure that the equipment is in proper working condition and there is no damage to the disc wheel or the tire.

NOTE: Comply with approved tires, tire sizes and optional extra.
Follow instructions on initializing run flat indicator:

RUN FLAT INDICATOR (RPA)

NOTE: Pay attention to different tire markings:

Item (1) Marking denoting BMW-approved tires. Ensure that only BMW-approved tires are fitted.
Item (2) RSC is the abbreviation for Runflat System Component (runflat tires).
Item (3) Outside. The tire must be fitted so that the wording Outside is always situated on the outside of the rim.

Fig 2: Identifying Different Tyre Markings
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Many tires are directional!
The arrow on the tire must point in the direction of travel for each wheel!
