36 11 105 Removing and installing (replacing) RDC control unit

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove right luggage compartment trim panel. See TRIM PANEL (CONVERTIBLE) or TRIM PANEL (COUPE) .
Disconnect negative battery cable. See REPLACING BATTERY NEGATIVE LEAD .

Disconnect plug connection (1).

Pull out control unit (2) towards top.

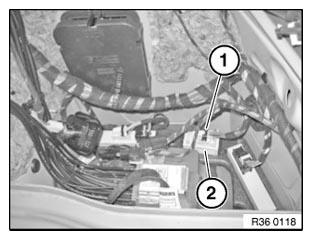

Fig 1: Identifying Plug Connection And Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING
