34 41 220 Removing and installing/replacing all handbrake shoes

Special tools required:

• 32 1 030
• 34 4 000

See STEERING AND WHEEL ALIGNMENT - SPECIAL TOOLS .

See BRAKES - SPECIAL TOOLS .

Necessary preliminary tasks:

• Remove rear brake disc

Lock adjuster unit (ASZE).

Actuate parking brake lever. Screw in special tool 32 1 030 partially. Press stop (1) of adjusting spring back to such an extent that retaining hook (2) engages in stop (1).

Installation:

Unlock adjuster unit (ASZE).

Lever out restraining hook (2) with a suitable screwdriver.

Restraining hook (2) must detach from stop (1) of adjusting spring.

Fig 1: Removing Restraining Hook Using Suitable Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect return spring (1) with brake spring pliers.

Installation:

Return spring (1) must not be overelongated.

Check and if necessary replace return spring (1).

Pay attention to installation position of adjustment screw (2).

Apply a thin coat of grease  to bush and screw threads.

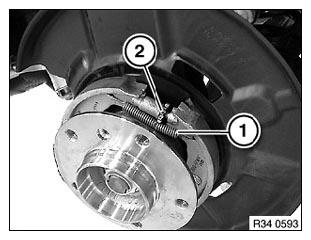

Fig 2: Identifying Return Spring And Adjustment Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect return spring (1) with brake spring pliers.

Installation:

Return spring (1) must not be overelongated.

Check and if necessary replace return spring (1).

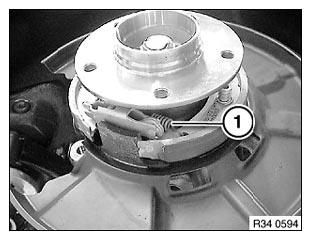

Fig 3: Identifying Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Turn clamping pins (1) with special tool 34 4 000 through 90° and disconnect.

Remove brake shoes (2).

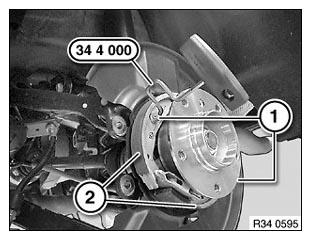

Fig 4: Turning Clamping Pins Using Special Tool 34 4 000

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Adjust parking brake
