34 41 120 Removing and installing or replacing both handbrake Bowden cables

Special tools required:

• 32 1 030

See STEERING AND WHEEL ALIGNMENT - SPECIAL TOOLS .

Necessary preliminary tasks:

• Disconnect battery negative lead  . See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
• Remove airbag control unit  . See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .

After completing work:

• Adjusting parking brake

Lock adjuster unit (ASZE).

Actuate parking brake lever. Screw in special tool 32 1 030 partially. Press stop (1) of adjusting spring back to such an extent that retaining hook (2) engages in stop (1).

Installation:

Unlock adjuster unit (ASZE).

Lever out restraining hook (2) with a suitable screwdriver.

Restraining hook (2) must detach from stop (1) of adjusting spring.

Fig 1: Removing Restraining Hook

Courtesy of BMW OF NORTH AMERICA, INC.

Press retainer (1) in balance arm (2) forward in direction of arrow.

Detach handbrake Bowden cables (3) from balance arm (2).

Fig 2: Pressing Retainer In Balance Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Remove expander lock   for parking braking shoes.

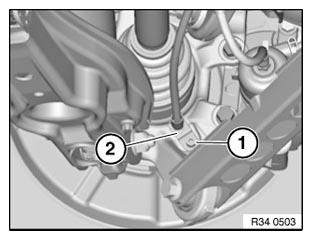

Release screw (1) and remove holder (2).

Pull handbrake cable out of wheel carrier.

Installation:

Tightening torque 34 41 2AZ, see 34 41 PARKING BRAKE

Fig 3: Identifying Screw And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

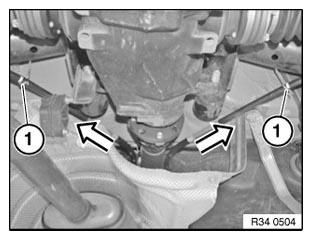

Disconnect handbrake cables from holders (1).

Pull handbrake cables towards rear out of guide tube.

Fig 4: Identifying Handbrake Cable Holders

Courtesy of BMW OF NORTH AMERICA, INC.
