34 41 000 Removing and installing/replacing handbrake lever

Special tools required:

• 32 1 030

See STEERING AND WHEEL ALIGNMENT - SPECIAL TOOLS .

Necessary preliminary tasks:

• Disconnect battery negative lead  . See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
• Remove airbag control unit  . See 65 77 016 REMOVING AND INSTALLING/REPLACING AIRBAG CONTROL UNIT .
  NOTE: If the parking brake lever is replaced, the handbrake lever grip must also be replaced.

Lock adjuster unit (ASZE).

Actuate parking brake lever. Screw in special tool 32 1 030 partially. Press stop (1) of adjusting spring back to such an extent that retaining hook (2) engages in stop (1).

Installation:

Unlock adjuster unit (ASZE).

Lever out restraining hook (2) with a suitable screwdriver.

Restraining hook (2) must detach from stop (1) of adjusting spring.

Fig 1: Removing Restraining Hook

Courtesy of BMW OF NORTH AMERICA, INC.

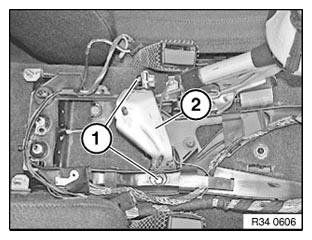

Release screws (1).

Tightening torque 34 41 5AZ, see 34 41 PARKING BRAKE

Remove bracket for center console (2).

Fig 2: Identifying Centre Console Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

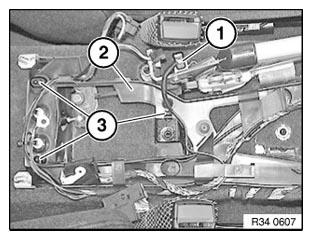

Disconnect cable (1) from handbrake check switch.

Unclip cable bracket (2) at point (3).

Remove cable bracket and place forward.

Fig 3: Identifying Cable And Cable Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

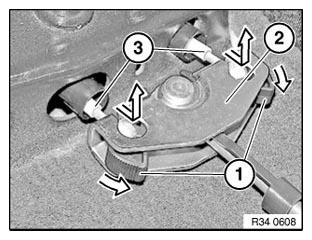

Press retainer (1) in balance arm (2) forward in direction of arrow.

Detach handbrake Bowden cables (3) from balance arm (2).

Fig 4: Pressing Retainer In Balance Arm

Courtesy of BMW OF NORTH AMERICA, INC.

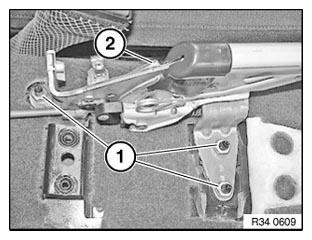

Release nuts (1) and remove parking brake lever (2).

Installation:

Replace self-locking nuts.

Tightening torque 34 41 1AZ, see 34 41 PARKING BRAKE

Parking brake lever and adjustment unit (ASZE) are only exchanged completely as a single unit.

Fig 5: Identifying Parking Brake Lever And Mounting Nut

Courtesy of BMW OF NORTH AMERICA, INC.
