34 11 250 Removing and installing/replacing a brake carrier/brake guard plate at front
WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front brake disks

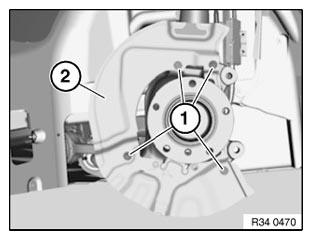

Release screws (1) and remove brake guard plate (2).
Installation:
Tightening torque 34 11 3AZ, see 34 11 FRONT BRAKE
