34 32 881 Replacing front left or right brake hose
WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Read and comply with GENERAL INFORMATION .
After completing work: Bleed braking system
Press clutch pedal down to floor and secure with pedal support.
NOTE:
The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

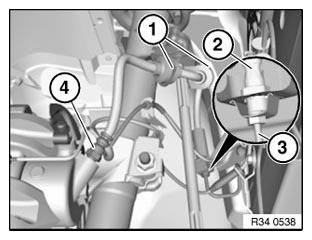

Pull brake hose out of both holders (1).
IMPORTANT:
Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.
Detach brake hose from brake line (3).
Installation:
Tightening torque 34 32 1AZ, see 34 32 BRAKE LINES
Detach brake hose from brake caliper (4).
Installation:
Tightening torque 34 32 2AZ, see 34 32 BRAKE LINES
IMPORTANT:
First tighten brake hose on brake caliper.
Move wheels into straight-ahead position.
Insert brake hose in bracket and screw onto brake pipe.
Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.
Move wheels into straight-ahead position.
Insert brake hose in bracket and screw onto brake pipe.
Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.
