33 55 021 Replacing both rubber mounts for stabilizer mounting
WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear wheels . See 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
- Lower rear axle support .

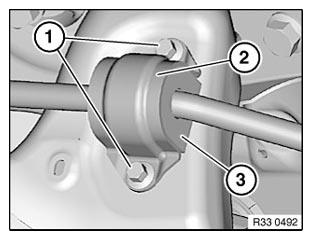

Release screws (1).
Remove retaining bracket (2) and rubber mount (3).
Installation:
Keep retaining bracket (2), rubber mount (3) and stabilizer clean and free from oil and grease.
Clean rear stabilizer on both sides.
Position rubber mount on rear stabilizer.
Position retaining bracket on rubber mount.
Push rubber mount with retaining bracket on rear stabilizer to installation position.
