33 32 195 Replacing rubber mount for camber arm in rear axle carrier

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 4 450
33 4 451
33 4 452
33 4 455
33 4 456
33 4 461
33 4 462
33 4 463
33 4 464
33 4 465
33 4 466

See REAR AXLE - SPECIAL TOOLS .

WARNING: Scalding hazard!
This work may only be carried out on an exhaust system which has cooled down.

Necessary preliminary tasks:

Remove coil spring
Remove camber arm from rear axle carrier

Removing rubber mount:

Pull out rubber mount with special tools 33 4 462, 33 4 464, 33 4 463, 33 4 466 and 33 4 465.

Fig 1: Pulling Out Rubber Mount Using Special Tools 33 4 462, 33 4 464, 33 4 463, 33 4 466 And 33 4 465

Courtesy of BMW OF NORTH AMERICA, INC.

Installing new rubber mount:

Pull rubber mount together with special tools 33 4 455, 33 4 456, 33 4 452 and 33 4 451.

Fig 2: Pulling Out Rubber Mount Using Special Tools 33 4 455, 33 4 456, 33 4 452 And 33 4 451

Courtesy of BMW OF NORTH AMERICA, INC.

Draw rubber mount into rear axle carrier so that slot (1), rubber mount center point and notch (2) form a line.

Fig 3: Identifying Slot And Notch

Courtesy of BMW OF NORTH AMERICA, INC.

Draw rubber mount as far as possible into rear axle carrier with special tools 33 4 461, 33 4 463, 33 4 466 and 33 4 465.

Remove special tool 33 4 450 and draw in rubber mount as far as it will go.

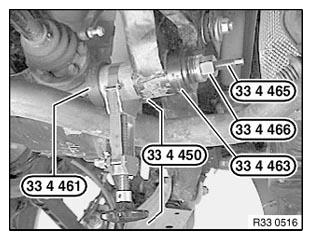

Fig 4: Removing Rubber Mount Using Special Tools 33 4 461, 33 4 463, 33 4 466 And 33 4 465

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform chassis alignment check . See ELECTRONIC CHASSIS ALIGNMENT .
