33 32 035 Replacing a rubber mount for trailing arm in rear axle carrier

Special tools required:

• 33 4 450
• 33 4 451
• 33 4 452
• 33 4 453
• 33 4 454
• 33 4 465
• 33 4 466
• 33 4 471
• 33 4 472
• 33 4 474
• 33 4 475

See REAR AXLE - SPECIAL TOOLS .

Necessary preliminary tasks:

• Remove trailing arm from wheel carrier

Removing rubber mount:

Mark installation position of rubber mount by way of slot to rear axle carrier.

Pull out rubber mount with special tools 33 4 472, 33 4 474, 33 4 475, 33 4 466 and 33 4 465.

Fig 1: Removing Rubber Mount Using Special Tools 33 4 472, 33 4 474, 33 4 475, 33 4 466And 33 4 465

Courtesy of BMW OF NORTH AMERICA, INC.

Installing new rubber mount:

If necessary, release knurled screws 33 4 452 and pull off mounting 33 4 455 with spring steel 33 4 456.

Insert rubber mount with spray-on points facing upwards in special tools 33 4 451, 33 4 452, 33 4 454, 33 4 453 and pull together.

Fig 2: Inserting Rubber Mount Using Special Tools 33 4 451, 33 4 452, 33 4 454 And 33 4 453

Courtesy of BMW OF NORTH AMERICA, INC.

All models except M3:

Align rubber mount by way of slot (1) at an angle to rear axle carrier.

Fig 3: Identifying Slot (All Models Except M3)

Courtesy of BMW OF NORTH AMERICA, INC.

M3:

Align rubber mount by way of slot (1) at an angle to rear axle carrier.

Fig 4: Identifying Slot (M3)

Courtesy of BMW OF NORTH AMERICA, INC.

Align rubber mount by way of slot to marking on rear axle carrier.

Draw rubber mount a little into rear axle carrier with special tools 33 4 471, 33 4 474, 33 4 475, 33 4 466 and 33 4 465.

Remove special tool 33 4 450.

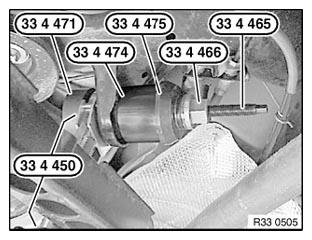

Fig 5: Removing Rubber Mount Using Special Tools 33 4 471, 33 4 474, 33 4 475, 33 4 466 And 33 4 465

Courtesy of BMW OF NORTH AMERICA, INC.

Apply a thin coating of Loctite 638 to new rubber mount. Draw in rubber mount as far as it will go.

After installation:

• Carry out wheel/chassis alignment check  . See ELECTRONIC CHASSIS ALIGNMENT .
