32 41 311 Replacing intake pipe for hydraulic steering

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

DANGER OF POISONING IF OIL IS INGESTED/ABSORBED THROUGH THE SKIN

RISK OF INJURY IF OIL COMES INTO CONTACT WITH EYES AND SKIN

IMPORTANT:

Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.

Close off pipe connections with plugs.

Recycling:

Catch and dispose of hydraulic fluid in a suitable container.

Observe country-specific waste-disposal regulations

Necessary preliminary tasks:

Draw off and dispose of hydraulic fluid from fluid reservoir
If necessary, remove intake silencer housing. See REMOVING AND INSTALLING/REPLACING INTAKE FILTER HOUSING (N54) .
Remove front underbody panelling. See FRONT UNDERBODY PROTECTION (COUPE) or FRONT UNDERBODY PROTECTION (CONVERTIBLE) .
Remove track rod from steering box. See REPLACING (REMOVING AND INSTALLING) LEFT OR RIGHT TIE ROD .

Release hose clamp (1) and detach intake pipe (2) from oil reservoir. Installation note: Make sure intake pipe is laid without tension and with sufficient spacing to adjoining components.

Fig 1: Release Hose Clamp (1) And Detach Intake Pipe (2) From Oil Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

Expose intake pipe up to connection on vane pump.

Release banjo bolt (1) and disconnect pressure line (2). Installation note: Replace all sealing rings. Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

Tightening torque 32 41 8AZ .

Fig 2: Release Banjo Bolt (1) And Disconnect Pressure Line (2)

Courtesy of BMW OF NORTH AMERICA, INC.

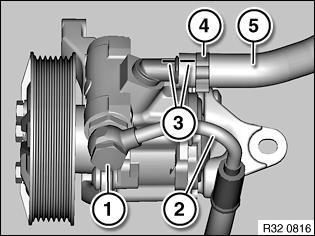

Release hose clamp (4) and detach intake pipe (5) from vane pump. Installation note: Marks (3) on intake pipe and vane pump connection must match up.

After installation:

Fill and bleed HYDRAULIC SYSTEM .
Check pipe connections for leaks
