26 12 011 Replacing Grooved Ball Bearing In Center Mount Of Propeller Shaft

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Refer to MANUAL TRANSMISSION - SPECIAL TOOLS

23 1 160 , see Fig 1.

Refer to REAR AXLE - SPECIAL TOOLS

33 3 202
33 3 203

Necessary preliminary tasks:

Replace propeller shaft center mount , see 26 12 001 REPLACING COMPLETE PROPELLER SHAFT CENTER MOUNT .

Press grooved ball bearing using special tool 23 1 160 out of center mount (1), see Fig 1.

NOTE: Illustration shows E46.

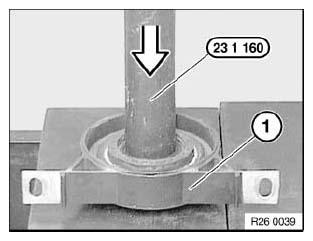

Fig 1: Pressing Grooved Ball Bearing Using Special Tool 23 1 160 Out Of Center Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Coat rubber-coated bearing seat of center mount (2) with Circolight.

Circolight, refer to BMW Parts Service.

Using special tools 33 3 202 and 33 3 203, press new grooved ball bearing (1) into center mount (2), see Fig 2.

NOTE: Illustration shows E46.

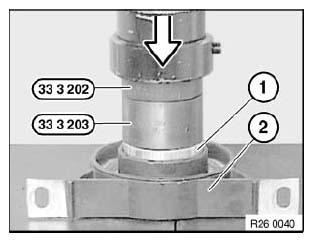

Fig 2: Pressing Grooved Ball Bearing Into Center Mount Using Special Tools 33 3 202 And 33 3 203

Courtesy of BMW OF NORTH AMERICA, INC.
