25 11 245 Replacing Shift Arm Support Bearing

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

If necessary, remove reinforcement carrier.
Remove rear underbody protection. See REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .
If necessary, release middle heat shield, do not remove.

NOTE: Only if heat shield has to be released.

Release nut (1) and remove bracket from rear differential. Slide heat shield towards rear.

Fig 1: Identifying Bracket Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Lever support bearing (1) with a short screwdriver out of mounting.

Pull support off shift arm.

Fig 2: Removing Support Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

GREASE bearing pin of shift arm.

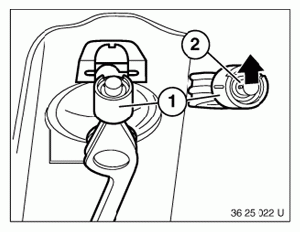

Fit support bearing (1) with opening (2) towards top rear onto mounting.

Fig 3: Fitting Support Bearing With Opening

Courtesy of BMW OF NORTH AMERICA, INC.
