25 11 001 Replacing Complete Shift Lever

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove selector lever. See REMOVING AND INSTALLING SHIFT LEVER .
Remove vibration damper (if fitted). See REMOVING AND INSTALLING/REPLACING VIBRATION DAMPER .

Detach mount from selector lever.

Installation:

GREASE ball joint.

Fig 1: Removing Mount From Selector Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rubber gaiter from selector lever.

Fig 2: Identifying Rubber Gaiter On Selector Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

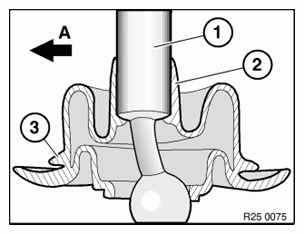

Degrease selector lever (1).

Coat rubber bellows on inside of shaped section (2) with Circolight.

Circolight, refer to BMW Parts Service.

Pull rubber gaiter from above over selector lever and align. Arrow (3) on rubber gaiter must point in direction of travel (A).

Fig 3: Identifying Selector Lever And Rubber Bellows On Inside Of Shaped Section

Courtesy of BMW OF NORTH AMERICA, INC.
