23 00 037 Installing Replacement Transmission (GS6-53BZ/DZ)

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: After completion of work, check transmission fluid level. See OIL CHANGE IN REAR DIFFERENTIAL INCL. USED OIL DISPOSAL . Use only the approved transmission fluid.

Failure to comply with this instruction will result in serious damage to the transmission.

Recycling:

Catch and dispose of escaping transmission fluid.

Observe country-specific waste-disposal regulations

Necessary preliminary tasks:

Drain gear oil at oil drain plug. Tightening torque 23 00 4AZ .
Remove transmission. See REMOVING AND INSTALLING TRANSMISSION (GS6-53BZ) N54 .

If necessary, unfasten screws.

Remove and convert transmission bearing block.

Tightening torque 22 32 2AZ .

NOTE: Illustration shows E46.

Fig 1: Locating Transmission Bearing Block Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Convert shift rod joint.

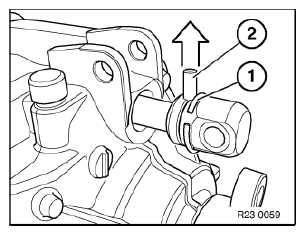

Push back retaining ring (1) and drive out dowel pin (2).

Fig 2: Removing Dowel Pin

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check damping disk (6) for damage and replace if necessary.

Fig 3: Identifying Damping Disk

Courtesy of BMW OF NORTH AMERICA, INC.

Convert following parts from previous transmission to new transmission.

Release bearing and release lever .
Ball pin and spring wire clip
Studs for clutch slave cylinder.
Reversing light switch, tightening torque 23 41 5AZ .

Add final details to vehicle.

Check oil level.

Installation:

Observe greasing specification.
