Removal & Installation

Unflange propeller shaft from transmission and tie back to side on vehicle underbody. Remove shift lever. See SHIFT LEVER  . Lever support bearing (1) out of mount. See Fig 1 .

Fig 1: Levering Out Support Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

During installation, install support bearing (1) with arrow (2) facing upwards in holder. See Fig 2 .

Fig 2: Installing Support Bearing With Arrow Facing Upward

Courtesy of BMW OF NORTH AMERICA, INC.

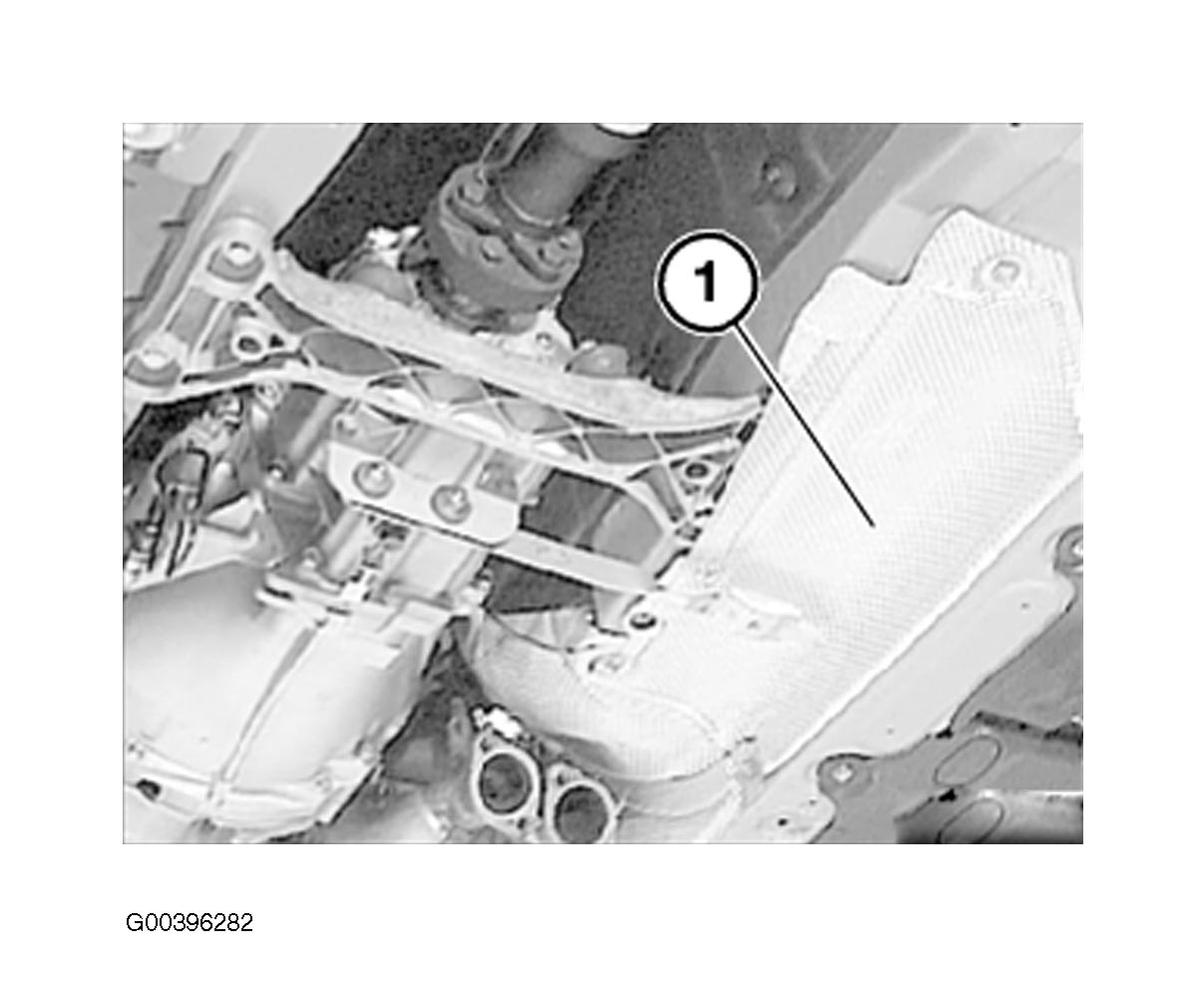

Remove heat shield (1). See Fig 3 .

Fig 3: Removing Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

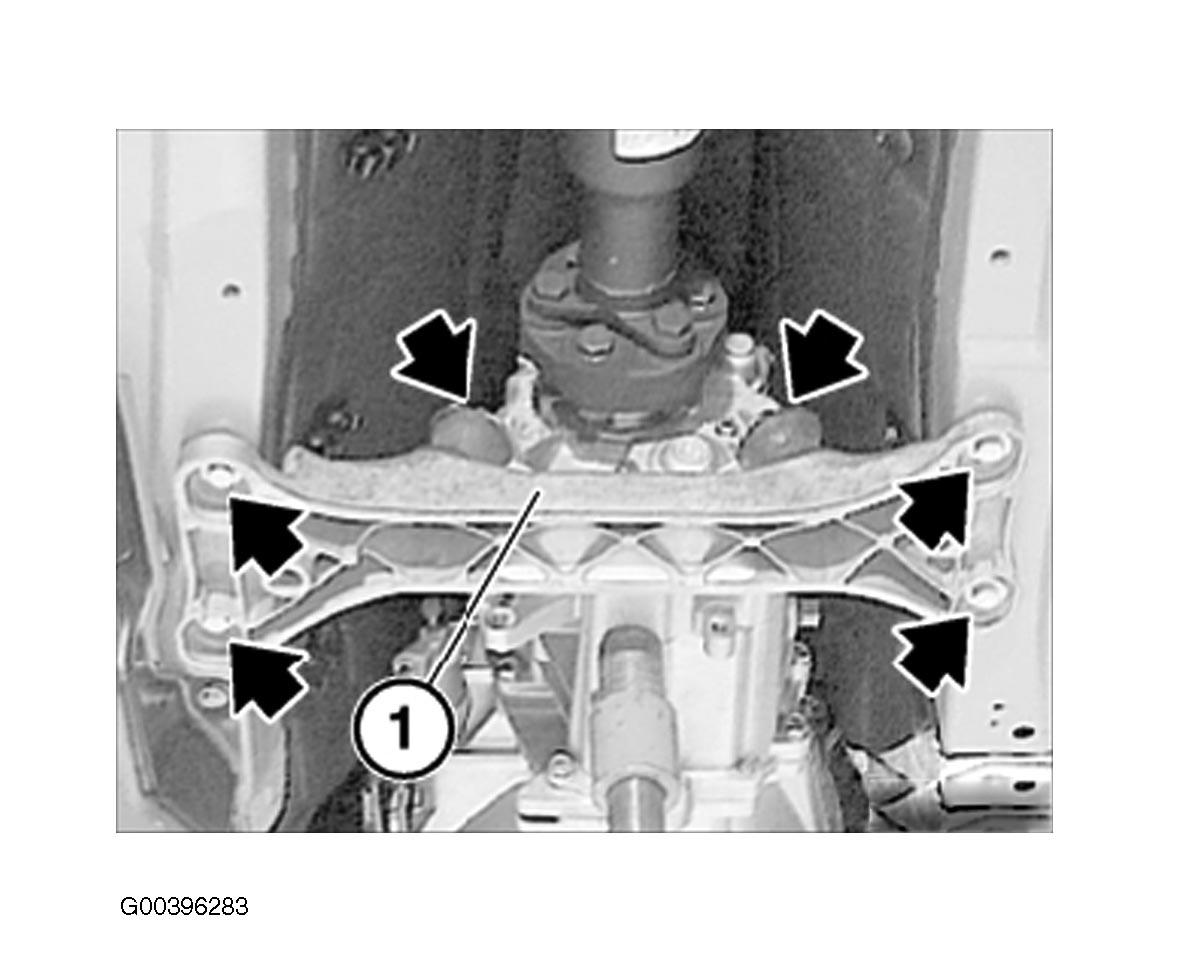

Support transmission with a workshop hoist. Unclip cable from crossmember. Release bolts and remove crossmember (1). See Fig 4 . Lower transmission slightly.

Fig 4: Removing Crossmember Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

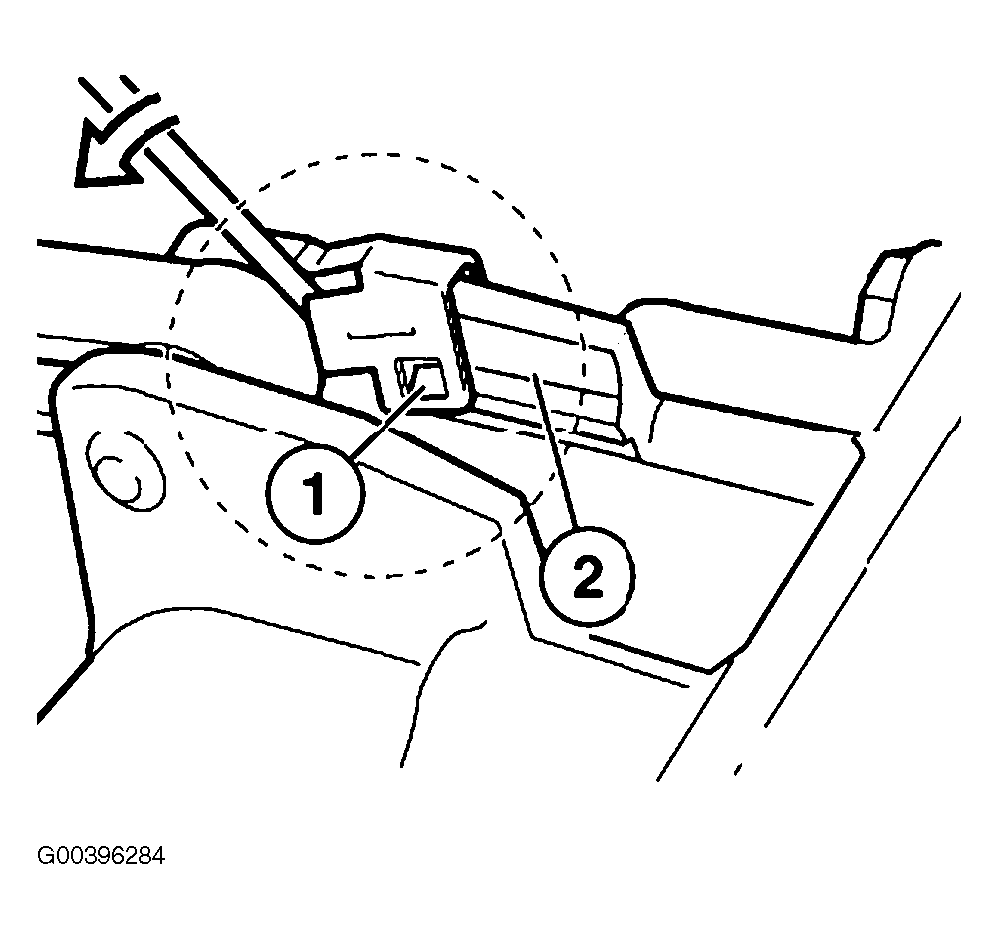

Lever out spring (1) with a screwdriver from lug (2) on housing. Tilt spring upwards. See Fig 5 .

Fig 5: Levering Out Spring

Courtesy of BMW OF NORTH AMERICA, INC.

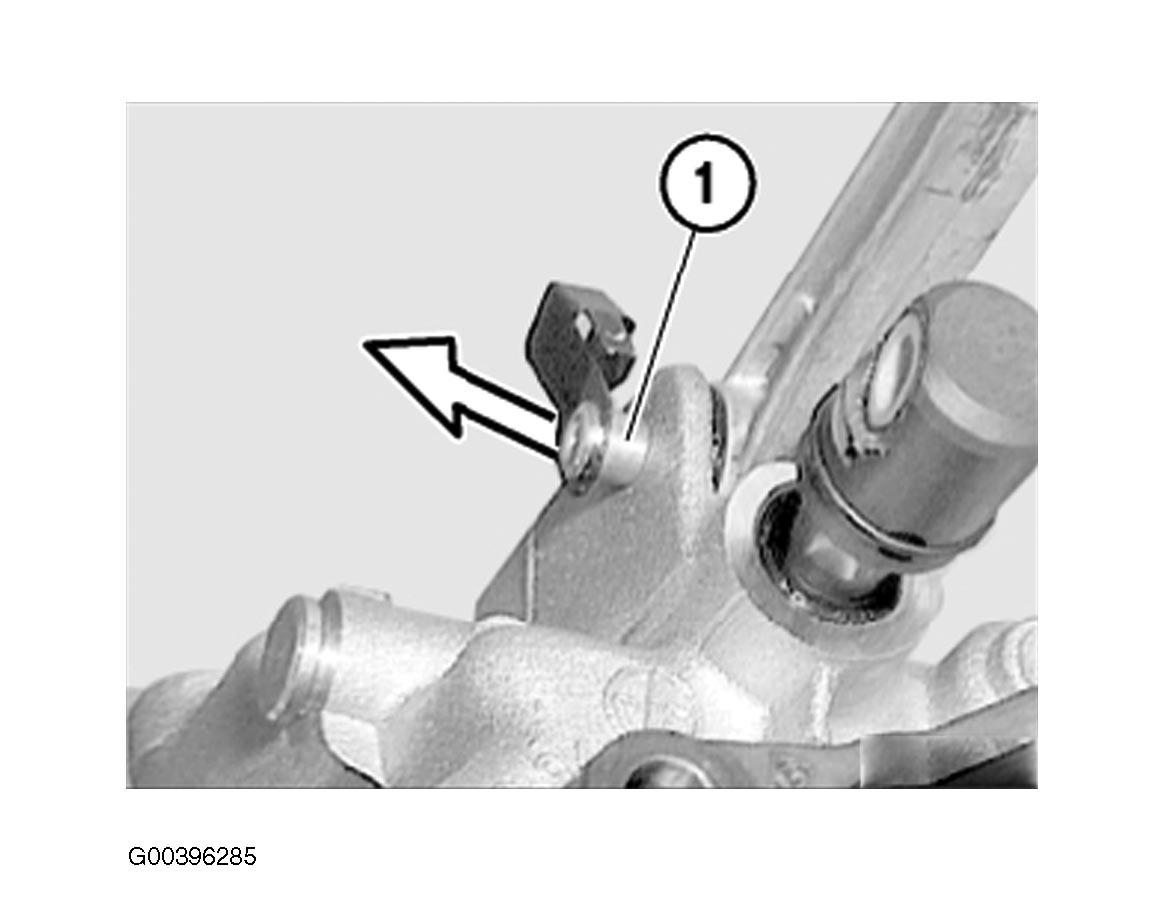

Remove bearing pin (1). During installation, grease bearing pin. See Fig 6 .

Fig 6: Identifying Bearing Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Remove shift arm. Detach support bearing (1) from shift arm. During installation, grease bearing journal. Attach support bearing (1) with opening (3) toward rear on shift arm. See Fig 7 .

Fig 7: Attaching Support Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Replace bearing bushing if damaged. Press out bearing bushing. Coat new bearing bushing with Circolight lubricant and then press into shift arm until side flanges of bearing bushing protrude uniformly. See Fig 8 .

Fig 8: Identifying Bearing Bushing

Courtesy of BMW OF NORTH AMERICA, INC.
