16 13 015 Removing And Installing/Replacing Tank Leak Diagnosis Module (Petrol/Gasoline Cars With US DMTL Version)
WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove carbon canister . See 16 12 010 REMOVING AND INSTALLING/REPLACING CARBON CANISTER (DMTL) .

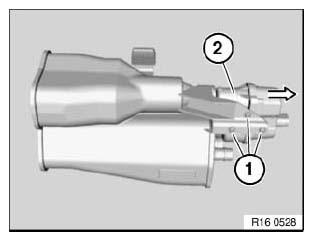

Release screws (1).
Disconnect tank leak diagnosis module (2) from carbon canister in direction of arrow.
Installation:
Tightening torque, see 16 13 2AZ in 16 13 TANK VENTILATION .
Replace sealing ring.
