61 31 101 Removing And Installing/Replacing Switch For Backrest Width Adjustment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Expand catches (1) of outer cover (2) and unclip switch for backrest width adjustment (3) in direction of arrow.

Disconnect associated plug connection and remove switch for backrest width adjustment (3).

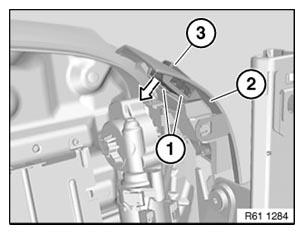

Fig 1: Expanding Catches Of Outer Cover

Courtesy of BMW OF NORTH AMERICA, INC.
