61 14 010 Removing And Installing/Replacing Power Distributor (On Battery) (From 03/2007)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe Safety instructions for handling vehicle battery.

Necessary preliminary tasks:

Remove luggage compartment floor trim . See 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL (CONVERTIBLE) .
Disconnect battery negative lead

E81/E87:

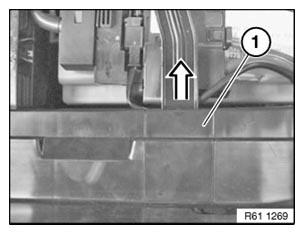

Unclip trim (1) in direction of arrow and remove.

Fig 1: Unclipping Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove bracket (2). Tightening torque, see 61 14 1AZ in 61 14 DISTRIBUTION BOX, CURRENT TERMINALS .

Fig 2: Identifying Bracket Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

If necessary, release wiring harness fasteners from power distributor.

Open covers (2) and release nuts underneath.

Tightening torque:

61 21 2AZ = 61 21 BATTERY WITH TERMINAL
61 21 4AZ = 61 21 BATTERY WITH TERMINAL

Fig 3: Identifying Plug Connection & Covers
Courtesy of BMW OF NORTH AMERICA, INC.

Press locking brackets (2) downwards and unclip.

If necessary, using a screwdriver (1), expand locking bracket (2) at lower end and clip out.

Remove power distributor (3) towards top.

Fig 4: Pressing Locking Brackets

Courtesy of BMW OF NORTH AMERICA, INC.
