61 12 200 Replacing Wiring Harness In Left Or Right Front Door

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on handling wiring harnesses and cables.

Necessary preliminary tasks:

Close front side window completely
Remove front acoustic insulation

E81/E82/E88:

Remove corner trim. See 51 16 000 REMOVING AND INSTALLING OR REPLACING MIRROR ON LEFT OR RIGHT FRONT DOOR .

NOTE: Work is shown on the E87 by way of example. There may be differences in detail in the case of other vehicle models.

Disconnect plug connection (1) at door lock.

Disconnect plug connection (4) on power window unit.

Disconnect plug connection (2) on outside door handle light.

Disconnect plug connection (5) on door mirror.

If necessary, disconnect plug connection for sensor on front door . See 65 77 740 REMOVING AND INSTALLING (REPLACING) LEFT FRONT DOOR SENSOR .

Unclip door wiring harness at points (3).

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Equipment with comfort access system:

Disconnect plug connection (1).

Unclip door wiring harness at points (2).

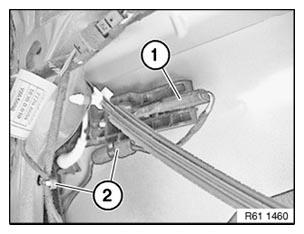

Fig 2: Identifying Plug Connection & Door Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fold door wiring harness plug on A-pillar (2) downwards slightly and remove.

Disconnect plug connection behind.

Pull rubber grommet (3) out of front door.

Feed out door wiring harness towards front to A-pillar and remove.

Fig 3: Pulling Rubber Grommet Out Of Front Door

Courtesy of BMW OF NORTH AMERICA, INC.
