24 4 380 Bushing With Nut

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE: For drawing in selector shaft seal.

Transmission: GA6 HP19Z, GA6L45R

SI number: 1 02 07 (334)

Order number: 24 4 380

Bushing with nut

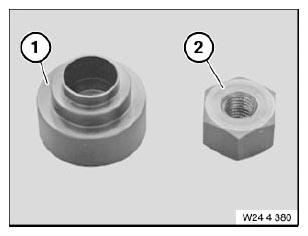

Fig 1: Identifying Bushing With Nut (24 4 380)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 24 4 381 Bushing

2 = 24 4 382 Nut M8x1
