24 1 180 Fixture

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 24 1 080

NOTE: For removing and installing oil pump

Transmission: A5S 310Z, A5S 560Z, GA6 HP19Z, GA6 HP26Z, GA6 HP32Z, GA6L45R

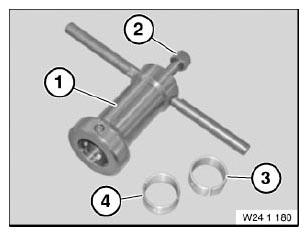

Fig 1: Identifying Fixture (24 1 180)

Courtesy of BMW OF NORTH AMERICA, INC.

Storage location: Z1, Z2

SI number: 01 09 90 (282)

Order number: 24 1 180

Fixture

Consisting of:

1 = 24 1 181 Retaining tube

2 = 24 1 182 Thread spindle

3 = 24 1 183 Clamping ring

4 = 24 1 184 Clamping ring

NOTE: Transmission: GA6HP19Z, GA6HP26Z
