21 2 280 Clutch Centering Tool

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For centering drive plate to driven plate when installing clutch on engine. Transmission: GS6-53DG with S85, S65

Transmission: GS6-53BZ

SI number: 01 18 06 (295)

Order number: 21 2 280

Clutch centering tool

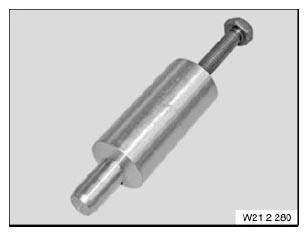

Fig 1: Identifying Clutch Centering Tool (21 2 280)
G06179532Courtesy of BMW OF NORTH AMERICA, INC.
