Installation Of Replacement Transfer Case
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

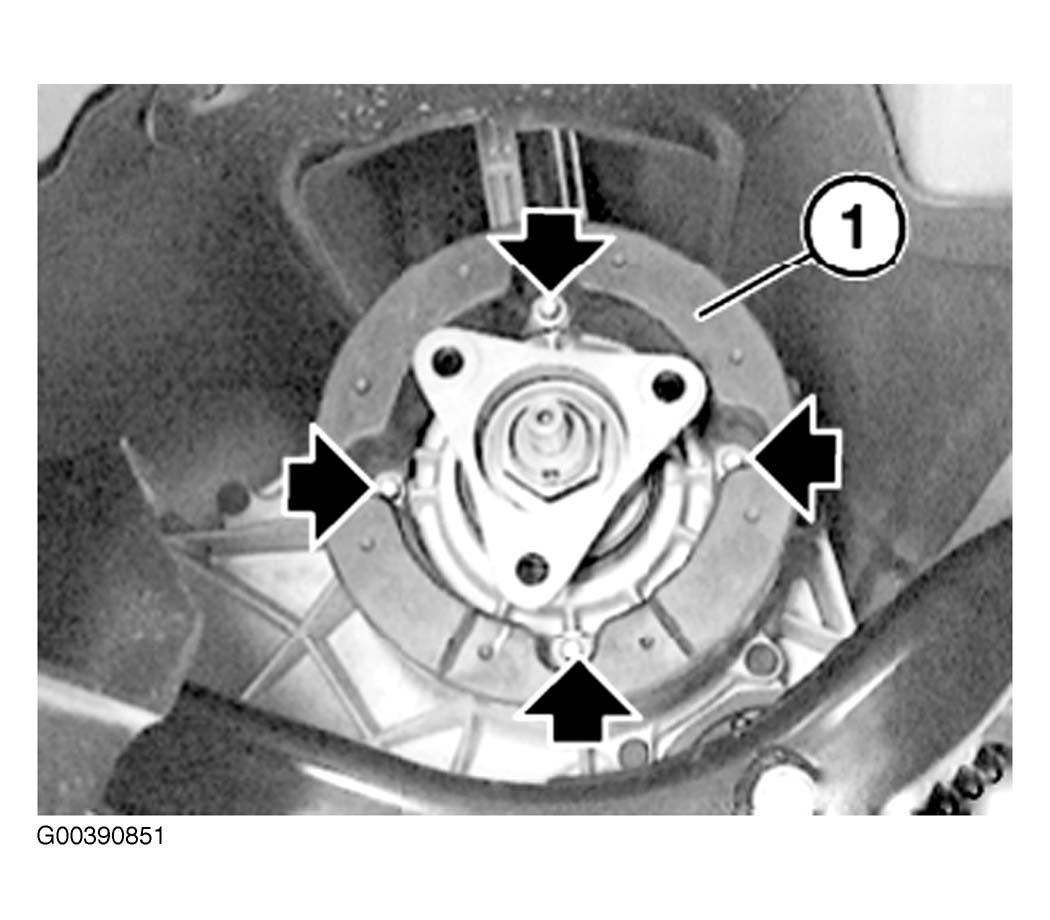

Note location of filler plug (1) and drain transfer case oil. Remove old transfer box. See TRANSFER BOX (ATC 500 X-DRIVE TRANSFER BOX) . On manual transmission, remove screws and convert vibration damper. See Fig 1. On all models, swap covers and protective caps, drive shaft transportation lock, vent hose of transfer box, and rubber mount for transfer case mounting.
